Dynamic Supervisor With Registry

Table Of Contents

Motivation

Setup

Components

• Application entrypoint
• Registry
• Workers Supervisor
• Worker

Running it

• Crash one worker
• Stop one worker
• Creating three workers

Motivation

One of the main feature of Elixir is the ability to guarantee that if a supervised process fails or get crashed for any reason, other process with the same functinality will be started as soon as the supervisor process realizes the problem. This is related to the fault-tolerance capability.

Let's say that we have an application in which at start we dont know how many processes we will have, because they will be generated dinamically during the running of the application. For example if we have a game application which allows several games at the same time and we want to get associated to each game one process, then we will need to dinamically launch a process per each game.

Since Elixir 1.6, Dynamic Supervisor is the module that makes simpler this task. In this post it will be exposed how to build a basic dynamic supervisor, using Elixir Registry to keep reachable all the launched processes.

Setup

Let's create a new project using mix through the command line with:

mix new dynamic_supervisor_with_registry

We need to modify our file mix.exs to indicate the new application entrypoint:

............
#mix.exs
  def application do
    [
      mod: {DynamicSupervisorWithRegistry, []},
      extra_applications: [:logger]
    ]
  end
............

Components

Application entrypoint

We need to use an application entrypoint where starts the supervision tree, the file. This module will be on charge of supervise the Registry and the DynamicSupervisorWithRegistry.WorkerSupervisor.

#lib/dynamic_supervisor_example.ex
defmodule DynamicSupervisorWithRegistry do
  use Application # Indicate this module is an application entrypoint

  @registry :workers_registry

  def start(_args, _opts) do
    children = [
      { DynamicSupervisorWithRegistry.WorkersSupervisor, [] },
      { Registry, [keys: :unique, name: @registry]}
    ]

    # :one_to_one strategy indicates only the crashed child will be restarted, without affecting the rest of children.
    opts = [strategy: :one_for_one, name: __MODULE__]
    Supervisor.start_link(children, opts)
  end
end

As children of this module we have:

• Registry with name :workers_registry.
• DynamicSupervisorWithRegistry.WorkerSupervisor.

Registry

The registry allows us to register the workers by a custom name (in our case :workers_registry), that will allow to acess the workers easily, without needing to know its pid, just by a custom name. This registry is launched at the same supervisor level that the WorkersSupervisor.

Workers Supervisor

This module should just supervise the workers and allow to launch new workers.

# lib/dynamic_supervisor_example/worker_supervisor.ex
defmodule DynamicSupervisorWithRegistry.WorkersSupervisor do
  use DynamicSupervisor
  alias DynamicSupervisorWithRegistry.Worker

  def start_link(_arg),
    do: DynamicSupervisor.start_link(__MODULE__, [], name: __MODULE__)

  def init(_arg),
    do: DynamicSupervisor.init(strategy: :one_for_one)

  def start_child(child_name) do
    DynamicSupervisor.start_child(
      __MODULE__,
      %{id: Worker, start: { Worker, :start_link,  [child_name]}, restart: :transient})
  end

end

At the code above it is important to note:

• When starting a new child it is settled restart: :transient, what indicates that workers will be restarted only if they terminate due to an error not if it was a :normal termination. This configuration could be modified per each child.
• When init the process the restarting strategy selected is strategy: :one_for_one so only the crashed process will be restarted without affecting othersprocesses.

Worker

The worker module is a simple GenServer, in which we have just implemented some API functions and callbacks to handle a regular stop and an error crash. Later, we will test the different behaviour at the supervisor level when a crash happens.

The name of the process will be defined by the function via_tuple(name), whose code is {:via, Registry, {@registry, name} } that registers the process with custom name in the registry previously initialized with name :workers_registry. This via_tuple function will be used at registering and when trying to reach the associated GenServer.

The terminate(reason, name) callback will be called when the process is exiting.

# lib/dynamic_supervisor_example/worker.ex
defmodule DynamicSupervisorWithRegistry.Worker do
  use GenServer
  require Logger

  @registry :workers_registry

  ## API
  def start_link(name),
    do: GenServer.start_link(__MODULE__, name, name: via_tuple(name))

  def stop(name), do: GenServer.stop(via_tuple(name))

  def crash(name), do: GenServer.cast(via_tuple(name), :raise)

  ## Callbacks
  def init(name) do
    Logger.info("Starting #{inspect(name)}")
    {:ok, name}
  end

  def handle_cast(:work, name) do
    Logger.info("hola")
    {:noreply, name}
  end

  def handle_cast(:raise, name),
    do: raise RuntimeError, message: "Error, Server #{name} has crashed"

  def terminate(reason, name) do
    Logger.info("Exiting worker: #{name} with reason: #{inspect reason}")
  end

  ## Private
  defp via_tuple(name) ,
    do: {:via, Registry, {@registry, name} }

end

Running it

Creating three workers

Let's use the interactive shell of elixir (iex -S mix) to run the code. To create three new workers:

iex(1)> alias DynamicSupervisorWithRegistry.WorkersSupervisor
DynamicSupervisorWithRegistry.WorkersSupervisor

iex(2)> WorkersSupervisor.start_child("worker_1")
14:21:45.527 [info]  Starting "worker_1"
{:ok, #PID<0.138.0>}

iex(3)> WorkersSupervisor.start_child("worker_2")
14:21:45.529 [info]  Starting "worker_2"
{:ok, #PID<0.140.0>}

iex(4)> WorkersSupervisor.start_child("worker_3")
14:21:45.529 [info]  Starting "worker_3"
{:ok, #PID<0.142.0>}

iex(5)> :observer.start()

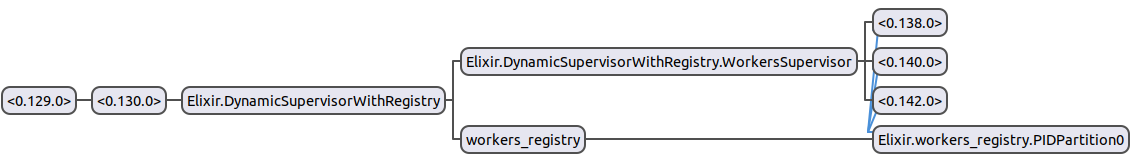

At last command (:observer.start()) it has been launched the erlang observer that allows us to see the supervisor tree of the application.

We can see how the three pids (#PID<0.138.0>, #PID<0.140.0>, #PID<0.142.0>) of the workers created are now pendig from our workers supervisor.

Stop one worker

Let's stop one of the workers to see how it is not restarted by the supervisor.

iex(7)> alias DynamicSupervisorWithRegistry.Worker
DynamicSupervisorWithRegistry.Worker

iex(8)> Worker.stop("worker_1")
:ok
16:31:45.596 [info]  Exiting worker: worker_1 with reason: :normal

The last message is printed by the logger at terminate(...) function. The process is not restarted since it has not been crashed.

Crash one worker

Let's crash one of the workers to see how it is restarted by the supervisor

Worker.crash("worker_2")
:ok

16:39:24.410 [info]  Exiting worker: worker_2 with reason: {%RuntimeError{message: "Error, Server worker_2 has crashed"}, [{DynamicSupervisorWithRegistry.Worker, :handle_cast, 2, [file: 'lib/dynamic_supervisor_with_registry/worker.ex', line: 28]}, {:gen_server, :try_dispatch, 4, [file: 'gen_server.erl', line: 637]}, {:gen_server, :handle_msg, 6, [file: 'gen_server.erl', line: 711]}, {:proc_lib, :init_p_do_apply, 3, [file: 'proc_lib.erl', line: 249]}]}

16:39:24.410 [error] GenServer {:workers_registry, "worker_2"} terminating

iex(12)>
** (RuntimeError) Error, Server worker_2 has crashed
    (dynamic_supervisor_example) lib/dynamic_supervisor_with_registry/worker.ex:28: DynamicSupervisorWithRegistry.Worker.handle_cast/2
    (stdlib) gen_server.erl:637: :gen_server.try_dispatch/4
    (stdlib) gen_server.erl:711: :gen_server.handle_msg/6
    (stdlib) proc_lib.erl:249: :proc_lib.init_p_do_apply/3
Last message: {:"$gen_cast", :raise}
State: "worker_2"

16:39:24.411 [info]  Starting "worker_2"

Again we can identified the terminate message but in this case the reason of error is not :normal so it displays all the traces related to the error.

It also appears the error message that logs the error when the process crash.

At last the Starting "worker_2" can be seen since the GenServer was restarted by the supervisor.

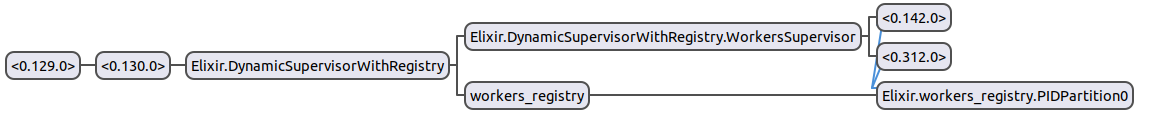

At observer we can see how the worker_1 now doesnt appear while the worker_2 has a different pid since it has been restarted.

We can see that the only worker process still alive is #PID<0.142.0> since it was the pid of the worker_3 the one that has not been restared neither stopped.
